Rover Manipulator

ROVER MANIPULATOR allow to lift, move and rotate your particulars with weight from 1 to 50 kg with the utmost sempliciity thanking to an ergonomic system, easy to be used.

In order to the type of handling, rover manipulator could be equipped of different gripping systems, as like: pneumatic grippers, magnet or suction cup.

During the manipultation is also possible to rotate the items in desired position before laying

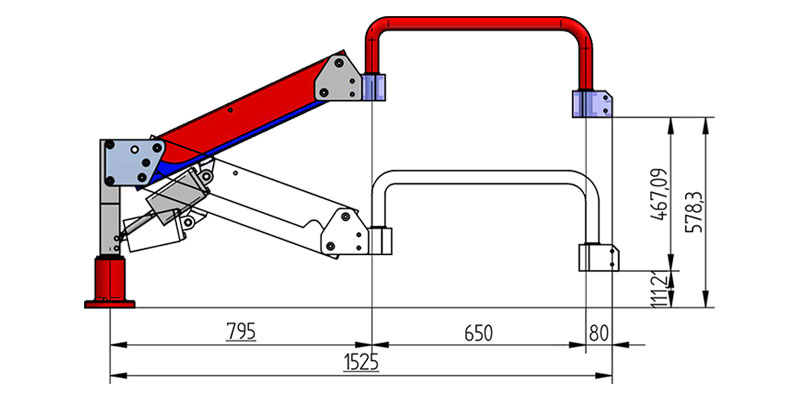

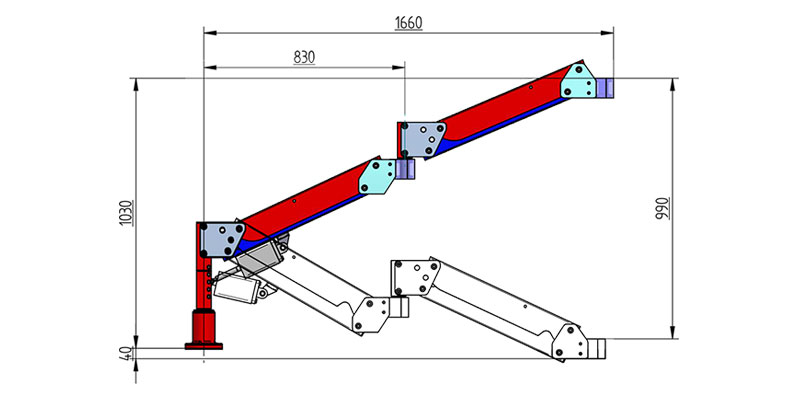

Working Area

Characteristics

  • LIFTING: From 1 to 50 kg.
  • WORKING RAY: 1660 mm + Head
  • VERTICAL RACE: 578 mm (990 mm)
  • ANCHORING SYSTEM: Pneumatic, Magnet, Suction Cup or Customized
  • WEIGHT: RM01: 30 kg - RM02: 40 kg
  • PRESSURE: 06-08 bar
  • SPEED REGULATION: going and return
  • OPERATING TEMPERATURE 10°-45°
  • ROTATION: 360°

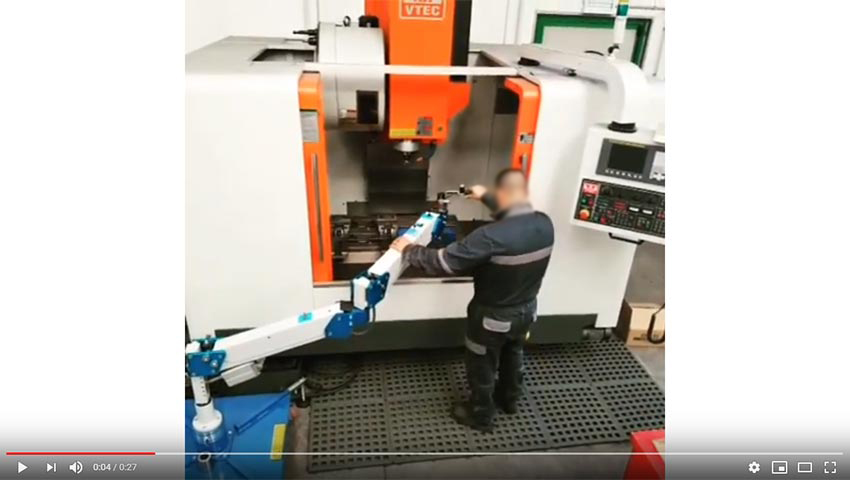

Video

Accessories

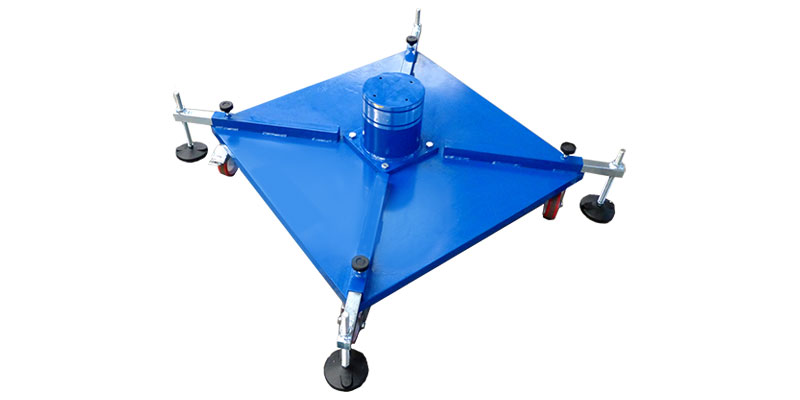

CSM001: TROLLEY MANIPULATOR HOLDER 800X800 mm
Equipped with four telescopic adjustable feets.
Moving on 4 turning wheels, 2 with brake.
Weight: 200 kg
