EasyArm Manipulator

Easyarm manipulator is a double or triple articulated arm system that allows to move / rotate parts of various types, shapes and materials

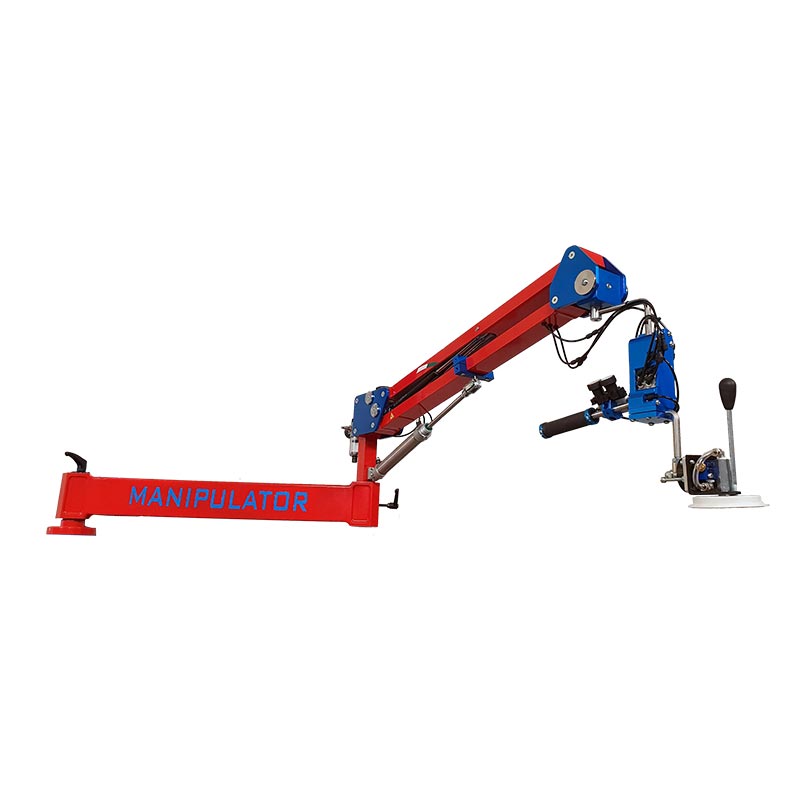

EASYARM MANIPULATOR EAM02

Model: Easyarm manipulator with: Pressure
(Bar)
Flat Steel Parts
(Kg)
Cylindrical steel parts
(Kg)
Plastic/Glass/box Aluminum/stainless steel /etc
(Kg)
Working area Min-max
(mm)
Balanced Arm
(Kg)
EAM2-00 Only Head 6-8 / / / 100-1942 1-30
EAM2-01 vacuum system 6-8 1-25 NO 1-25 100-1942 1-25
EAM2-02 pneu. magnet 5-8 1-46 1 - 30 NO 100-1942 1-28
EAM2-012 magnet + vacuum 5-8
6-8
1-46 1 - 30 1-25 100-1942 1-28
1-25

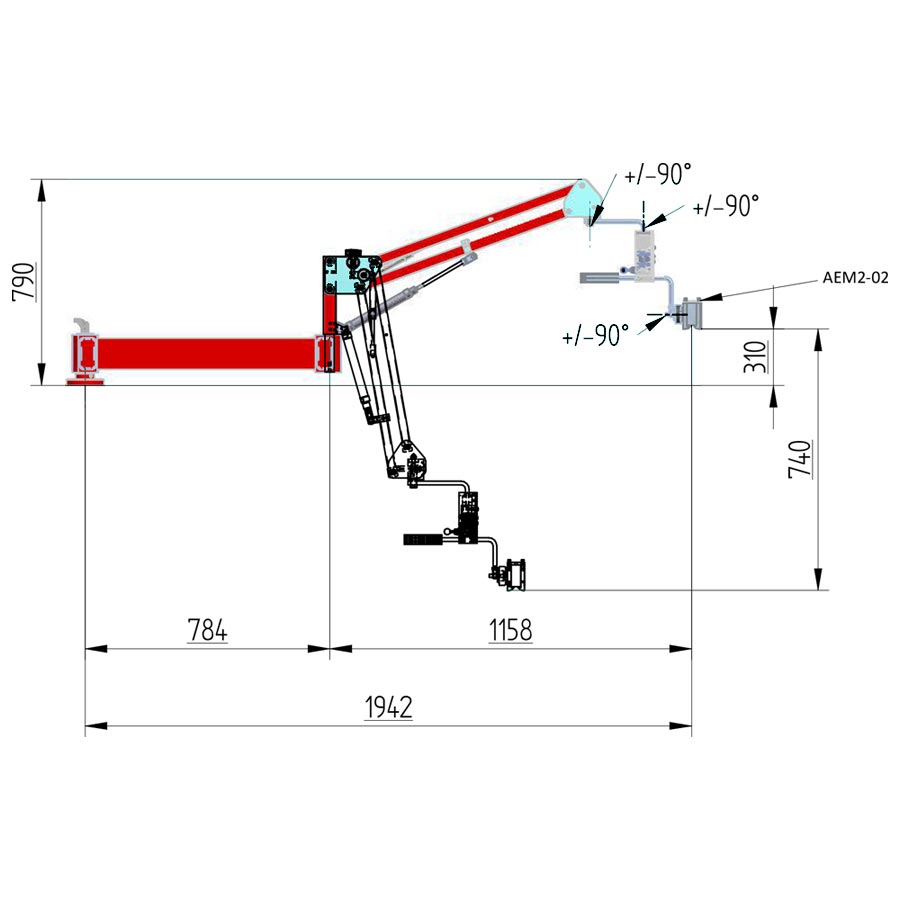

Working Area

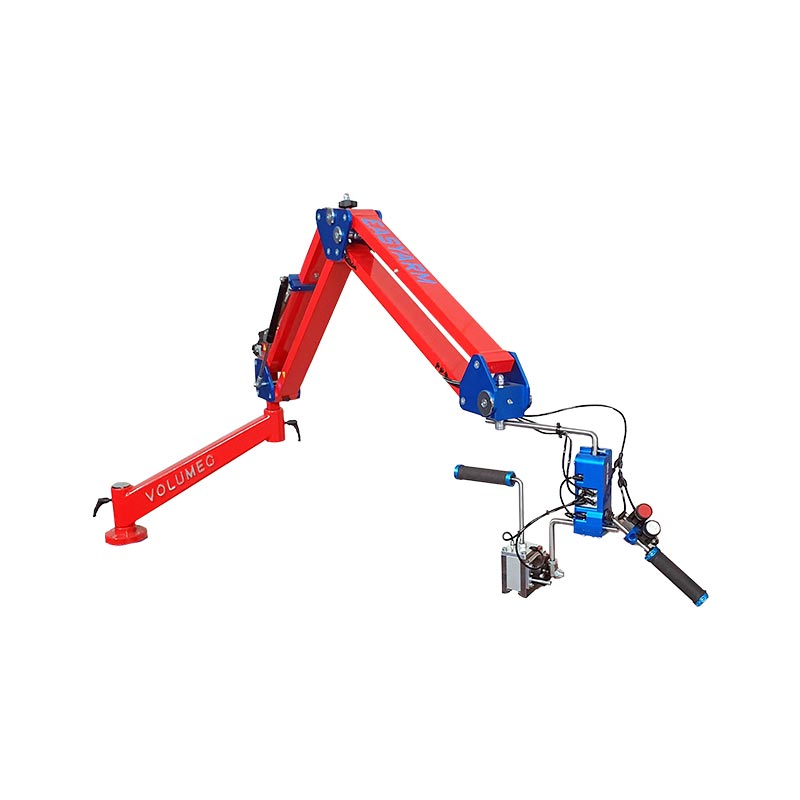

EASYARM MANIPULATOR EAM03

Model: Easyarm manipulator with: Pressure
(Bar)
Flat Steel Parts
(Kg)
Cylindrical steel parts
(Kg)
Plastic/Glass/box Aluminum/stainless steel /etc
(Kg)
Working area Min-max
(mm)
Balanced Arm
(Kg)
EAM3-00 Only Head 6-8 / / / 200-2160 1-15
EAM3-01 vacuum system 6-8 1-25 NO 1-23 200-2160 1-15
EAM3-02 pneu. magnet 5-8 1-46 1 - 30 NO 200-2160 1-14
EAM3-012 magnet + vacuum 5-8
6-8
1-46 1 - 30 1-23 200-2160 1-14
1-15

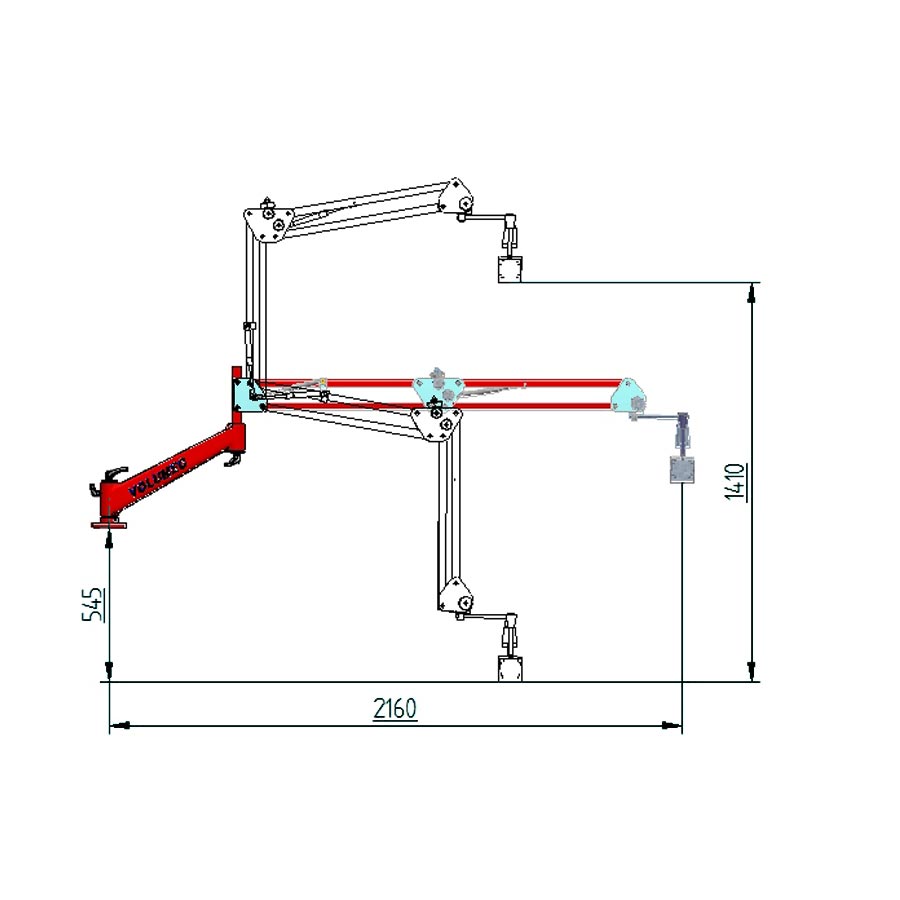

Working Area

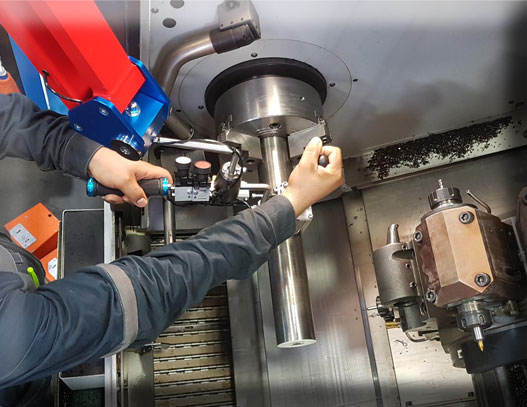

CYLINDRICAL PARTS

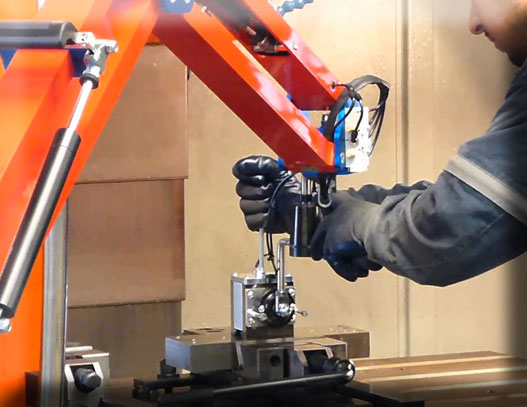

FLAT PARTS

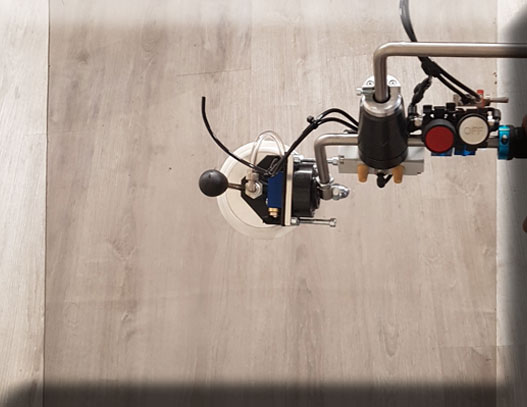

PLASTIC-GLASS PARTS
NO METALLIC PARTS

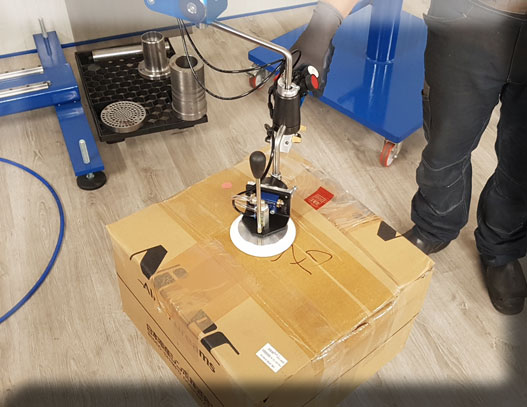

BOXES/CONTAINERS

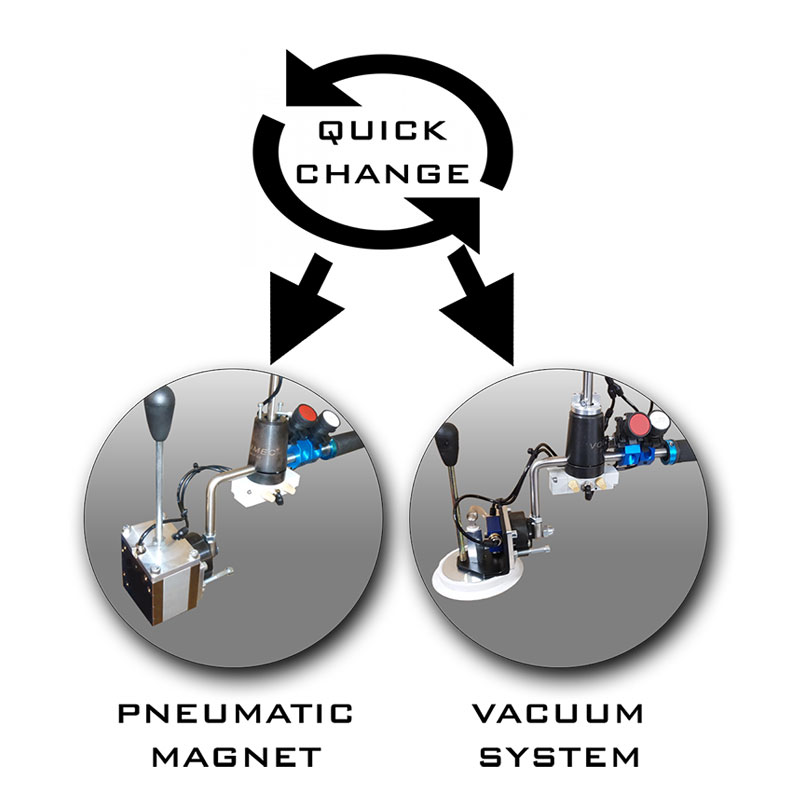

Quick Change

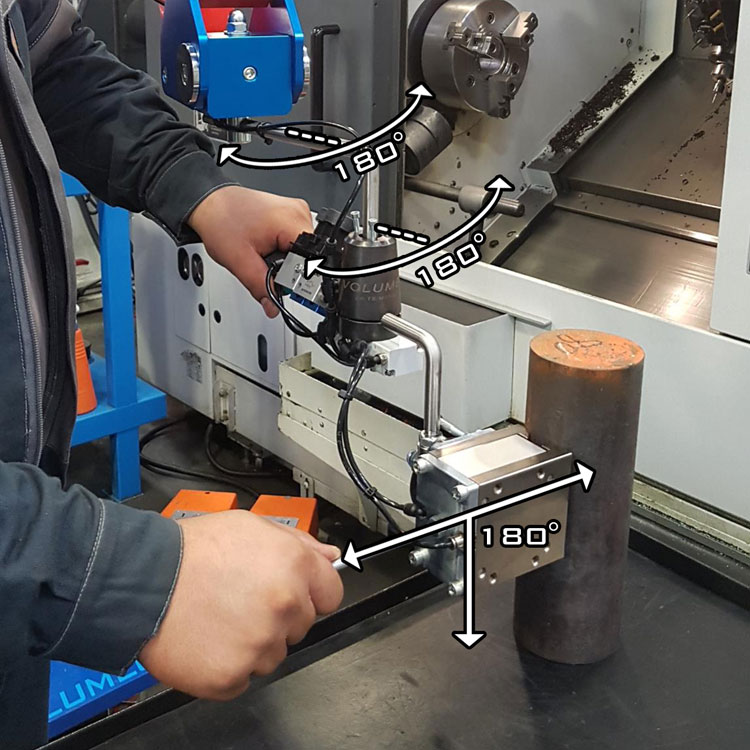

Rotation Parts

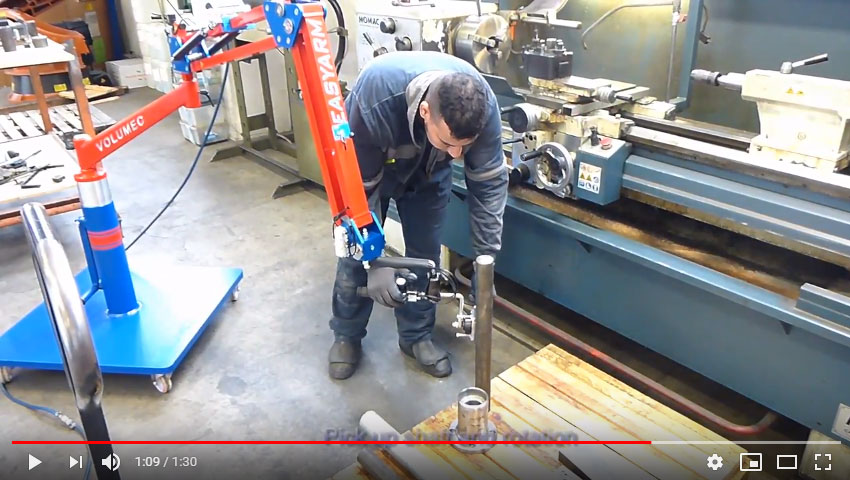

Video

Accessories

CCF100: TROLLEY WITH BASE 800X800X30 mm
central column for arm support h=1000 mm
4 turning wheels, 2 with brakes.
weight: 150 kg
CCM001: TROLLEY WITH LIFTING COLUMN 800X800X30 mm WITH HANDLE DRIVING
lifting column h=2000 mm handling of the linear guide and trapezoidal bar, moved by electric or pneumatic screwdriver. moved bt with 4 tournig wheels, 2 with brake.
Weight: 220 kg.
