EASYARM 3 Balanced Articulated Arm

The series EasyArm is designed to support and balance the weight of any tool or device up to 40 Kg.
The structure, built entirely of aircraft aluminum, ensures high fluidity of movement, keep the tool in the correct positions, and absorb couples / torsion due to the machining.
There are many combinations that can be realized by choosing between different fastening systems, locking the arm in any position, work areas and accessories.
The use of the articulated arm balanced prevents' fatigue of the operator thereby ensuring greater productivity in respect of their own health.
EasyArm is a full line of articulated arms balanced suitable for different areas of application.

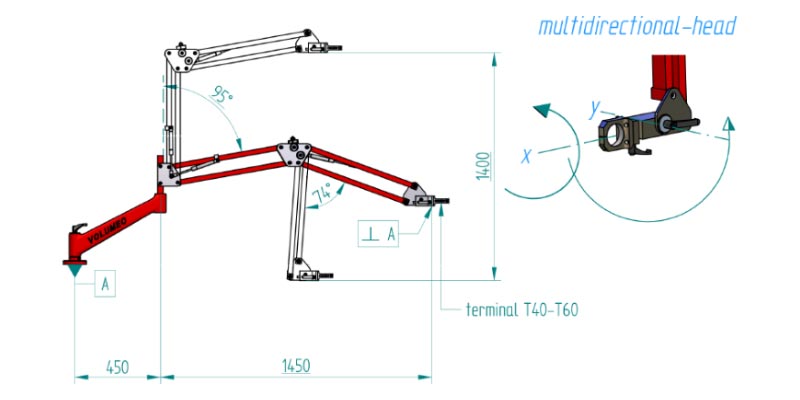

Working Area

Characteristics

  • Removes the weight of your tool, reducing operator fatigue while safeguarding the health but increasing productivity
  • Allows a fluid and manageable movement in any direction
  • Absorbs couples and twists due to the use of tools
  • Is built entirely at our company in Italy
  • Offers a complete range of solutions for every process.

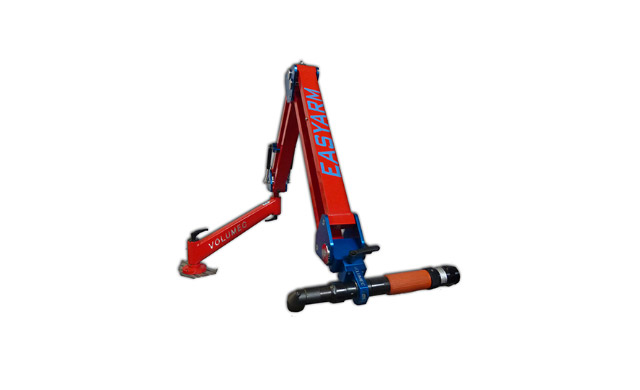

EA3 - Standard Triple articulated arm

The pantograph structure maintains the balance and at the same time contrasts the torque tool. By the tilting arm is possible to optimize the best working position. ZERO GRAVITY.
Model Ray work area Structure Torque Weight Balanced Weight Arm
(mm) (Nm) (kg) (kg)
EA195002 1900 Triple arm 120 1,5 – 2,5 16
EA195004 1900 Triple arm 120 3 – 5 16
EA195010 1900 Triple arm 180 5,5 – 8 17
EA196010 1900 Triple arm 300 8,5 – 11 17
EA196015 1900 Triple arm 300 11,5 - 15 18
EA196020 1900 Triple arm 300 16 - 20 18
EA197025 1900 Triple arm 300 21 - 25 20
EAT1610030 1600 Triple arm 500 26 - 30 50
EAT1610035 1600 Triple arm 500 31 - 35 50
EAT1610040 1600 Triple arm 500 36 - 40 50

EAB3 - Triple articulated arm with locking system

The EAB series can be used as standard balanced arm with the option of lock the tool to a desired height and maintained over the entire work area.
Model Ray work area Structure Torque Weight Balanced Weight Arm
(mm) (Nm) (kg) (kg)
EAB196002 1900 Triple arm 150 1,5 – 2 16
EAB196004 1900 Triple arm 150 2,5 – 5 18
EAB196008 1900 Triple arm 150 5,5 – 8 18
EAB196010 1900 Triple arm 200 8,5 – 11 19
EAB196015 1900 Triple arm 200 11,5 - 15 20

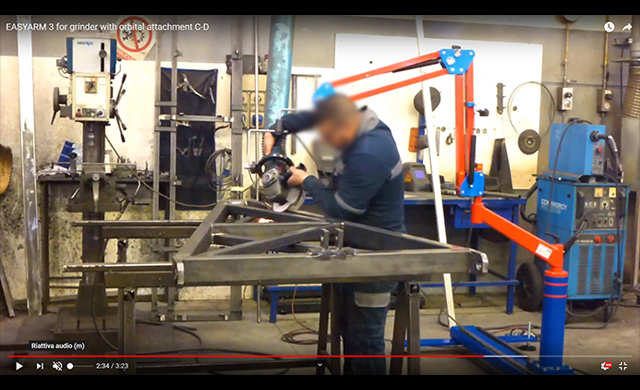

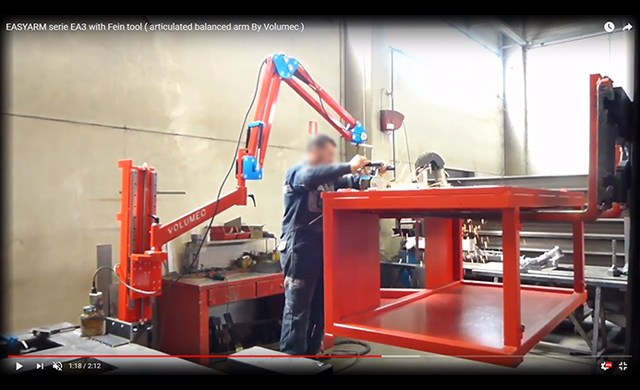

Video

Tools attachment

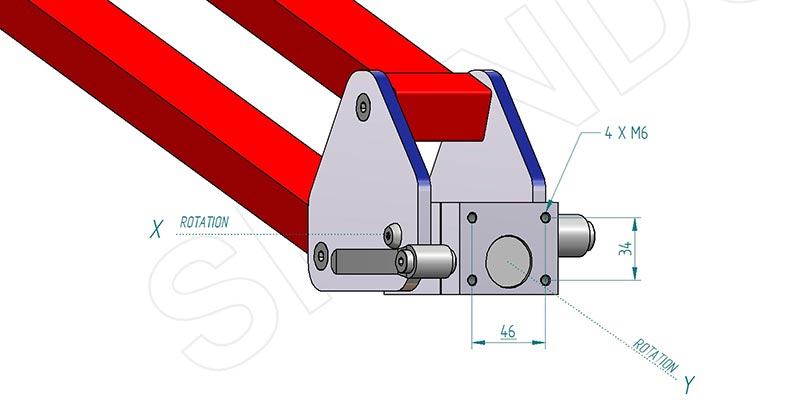

M - MULTIDIRECTIONAL HEAD

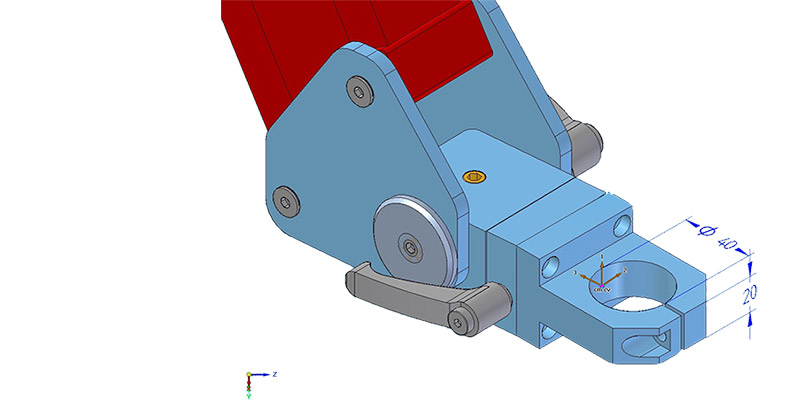

T40 - TERMINAL FIXING TOOL DIAMETER 40 mm

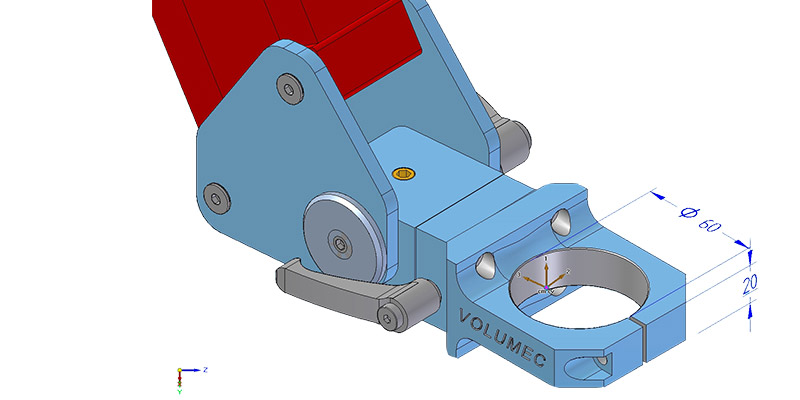

T60 - TERMINAL FIXING TOOL DIAMETER 60 mm
T80 - TERMINAL FIXING TOOL DIAMETER 80 mm

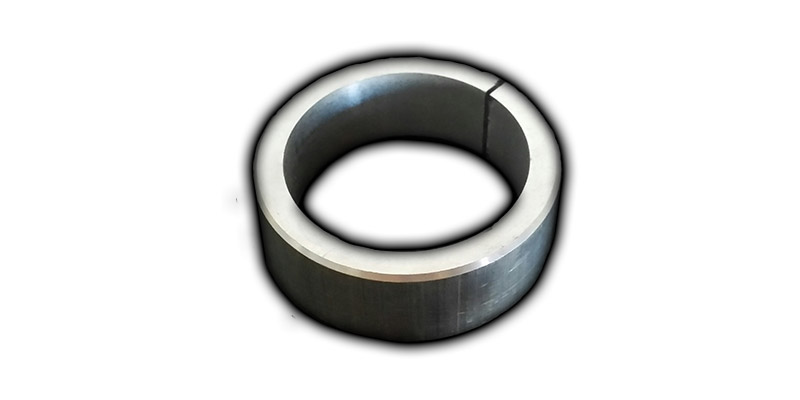

A - ADAPTER FOR DIAMETERS SMALLER THAN 40 MM, 60 MM, 80 MM

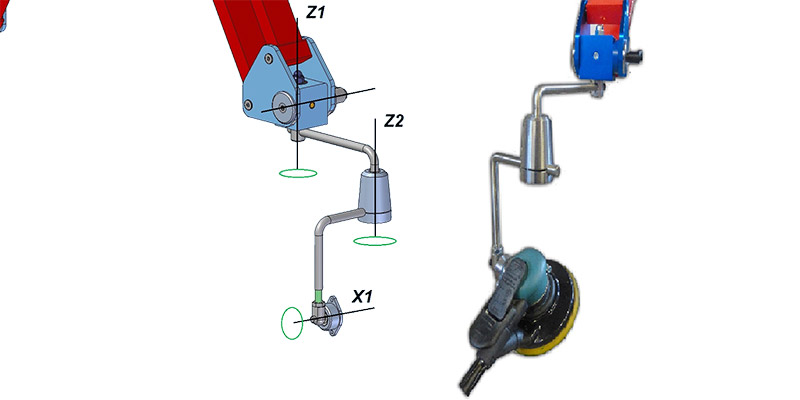

ORBITAL ATTACHMENT A

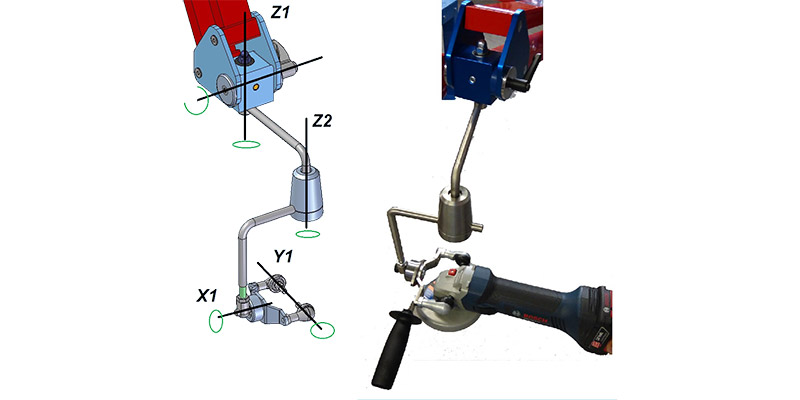

ORBITAL ATTACHMENT B

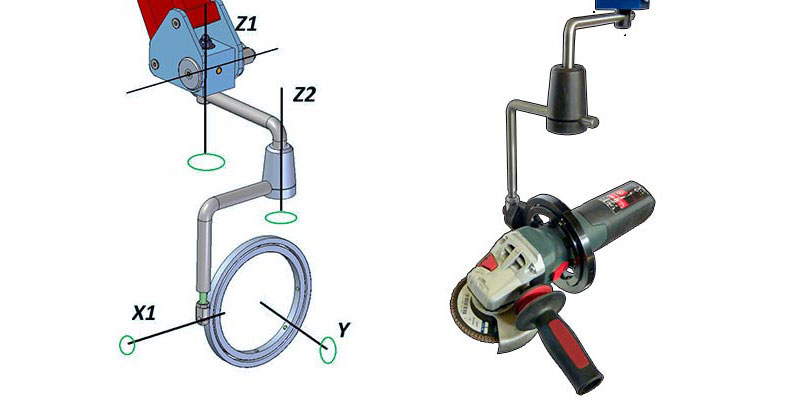

ORBITAL ATTACHMENT C - MAX Ø 130mm

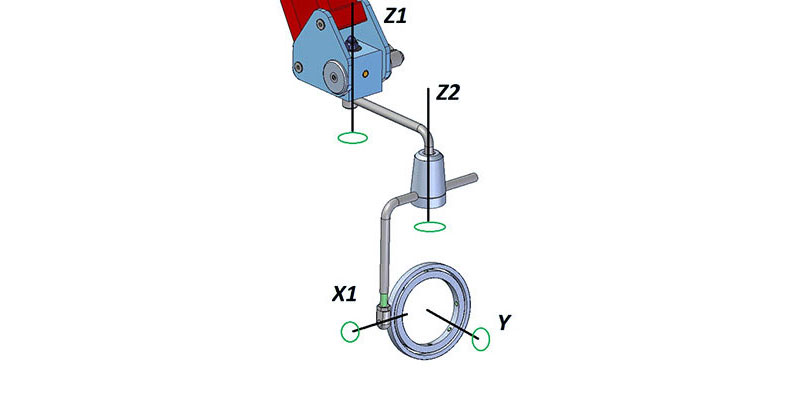

ORBITAL ATTACHMENT D - MAX Ø 85mm

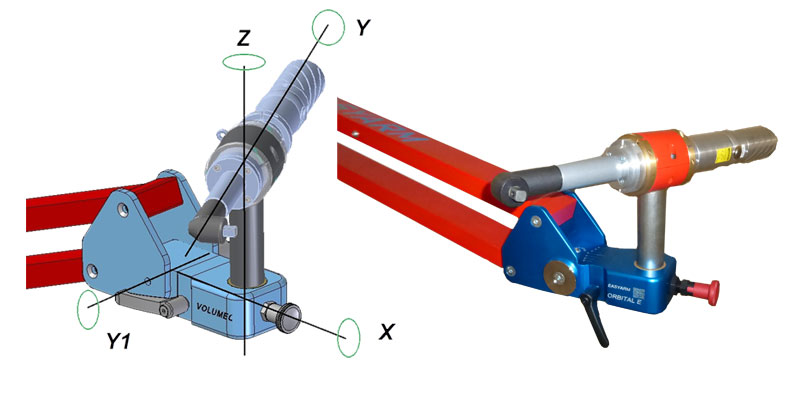

ORBITAL ATTACHMENT E

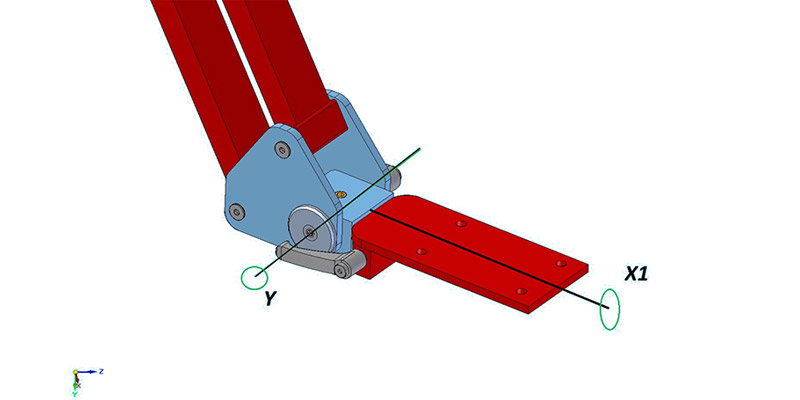

ATTACHMENT F
CUSTOM

Accessories

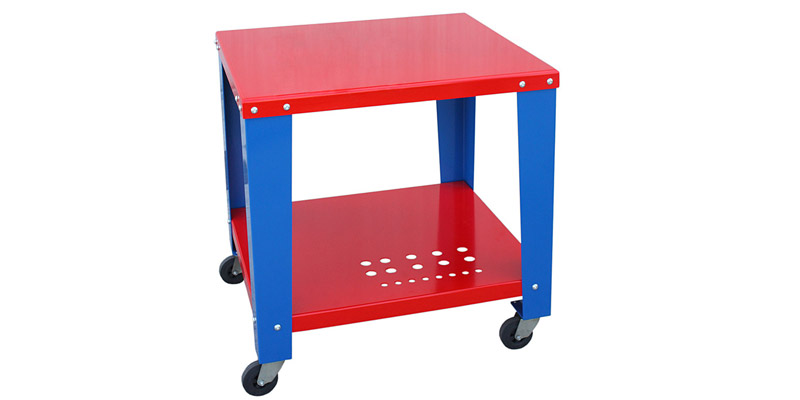

MCA001: TAPPING MACHINE TROLLEY HOLDER
850x750mm (total weight 65 kg.)
H=870 mm
Upper bull top
Internal top with bushes holder
4 turning wheels – 2 with brakes

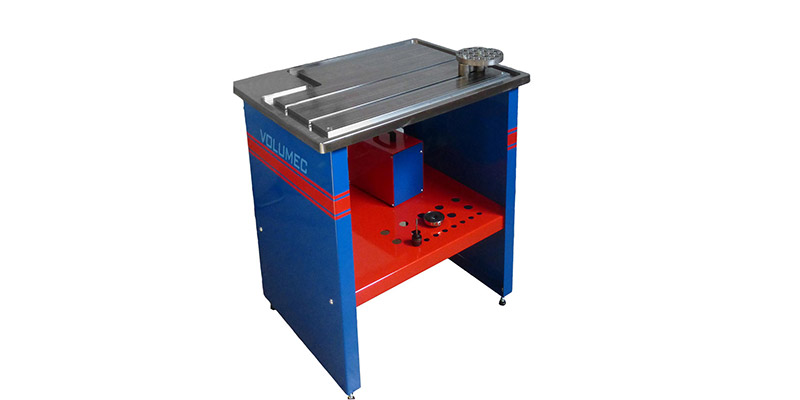

BML001: WORK STATION
800x600 mm (total weight 150 kg.)
H= 830 mm (adjustable)
Thickness of the working plane 30mm entirely in milled steel and t-slots interior bushes holder
CCM001: TROLLEY WITH LIFTING COLUMN 800X800X30 mm WITH HANDLE DRIVING
lifting column h=2000 mm handling of the linear guide and trapezoidal bar, moved by electric or pneumatic screwdriver. moved bt with 4 tournig wheels, 2 with brake.
Weight: 220 kg.

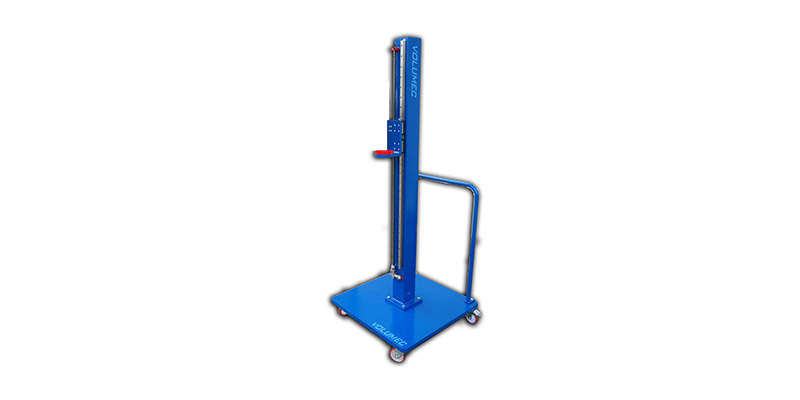

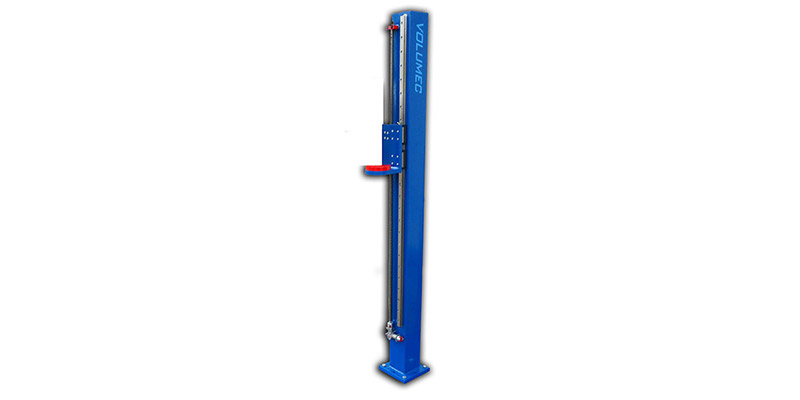

CCF001: LIFTING COLUMN H=1850 MM
handling on linear guide and trapezoidal bar controllable with electric or pneumatic screwdriver handle driving
weight 60 kg

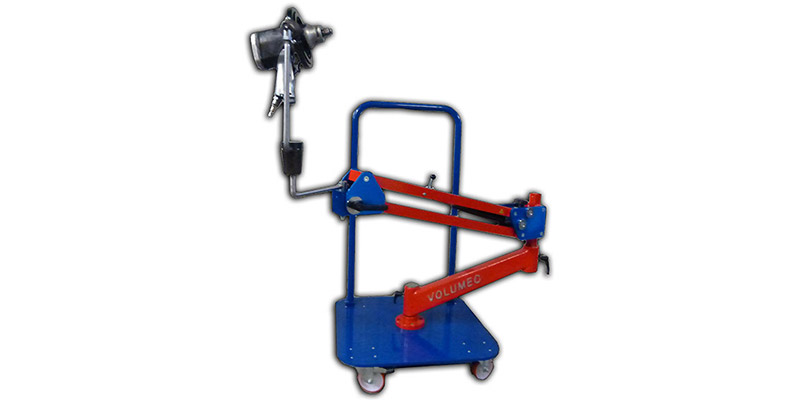

CCS001: TROLLEY WITH BASE 600X600x 10 mm and COUNTERWEIGHT
4 wheels and brake.
For double arm . EA2 o EAB2
Weight 60 Kg

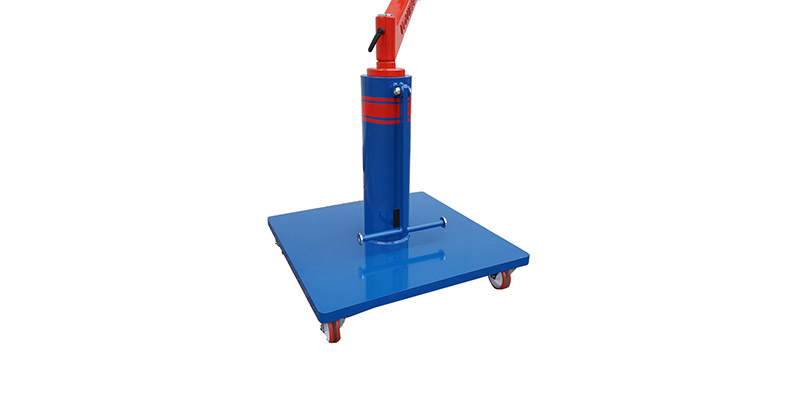

CCF100: TROLLEY WITH BASE 800X800X30 mm
central column for arm support h=1000 mm
4 turning wheels, 2 with brakes.
weight: 150 kg
