EASYARM MANIPULATOR

DESCRIPTION

Easyarm manipulator is a double or triple articulated arm system that allows to move / rotate parts of various types, shapes and materials

DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION

EASYARM MANIPULATOR

CYLINDRICAL PARTS
CYLINDRICAL PARTS
Flat Parts
Flat Parts
PLASTIC,GLASS PARTS, NO METALLIC PARTS
PLASTIC,GLASS PARTS, NO METALLIC PARTS
Boxes, Containers
Boxes, Containers

EAM02 - EASYARM MANIPULATOR

Sistema a doppio braccio articolato

Model Torque max Weight Arm
Nm kg
EAM2-00 Only Head 6-8 / / / 100-1942 1-30
EAM2-01 VACUUM 6-8 1-25 NO 1-25 100-1942 1-28
EAM2-02 pneu. magnet 5-8 1-46 1-30 NO 100-1942 1-28
EAM2-012 magnet + vacuum 5-8 / 6-8 1-46 1-30 1-25 100-1942 1-28

EAM03 - EASYARM MANIPULATOR

Sistema a triplo braccio articolato

Model Torque max Weight Arm
Nm kg
EAM3-00 Only Head 6-8 / / / 200-2160 1-15
EAM3-01 VACUUM 6-8 1-25 NO 1-23 200-2160 1-15
EAM3-02 pneu. magnet 5-8 1-46 1-30 NO 200-2160 1-14
EAM3-012 magnet + vacuum 5-8 / 6-8 1-46 1-30 1-23 200-2160 1-14 / 1-15

Working Area

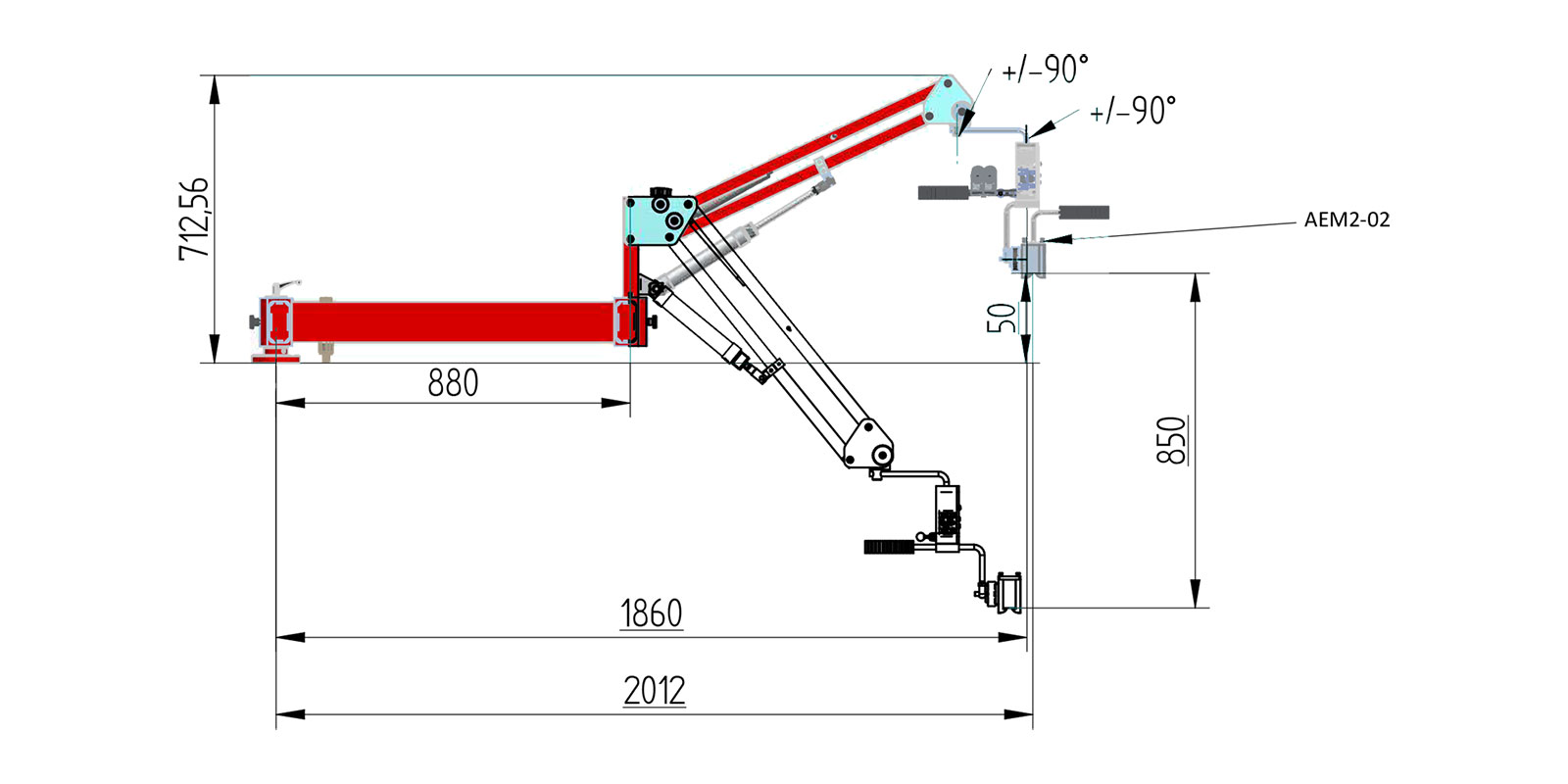

Working Area EAM02

Working Area EAM02

Working Area EAM03

Working Area EAM03

VIDEO

OPTIONALS

DESCRIPTION - CCM001 - TROLLEY WITH LIFTING COLUMN 800X800x30 mm

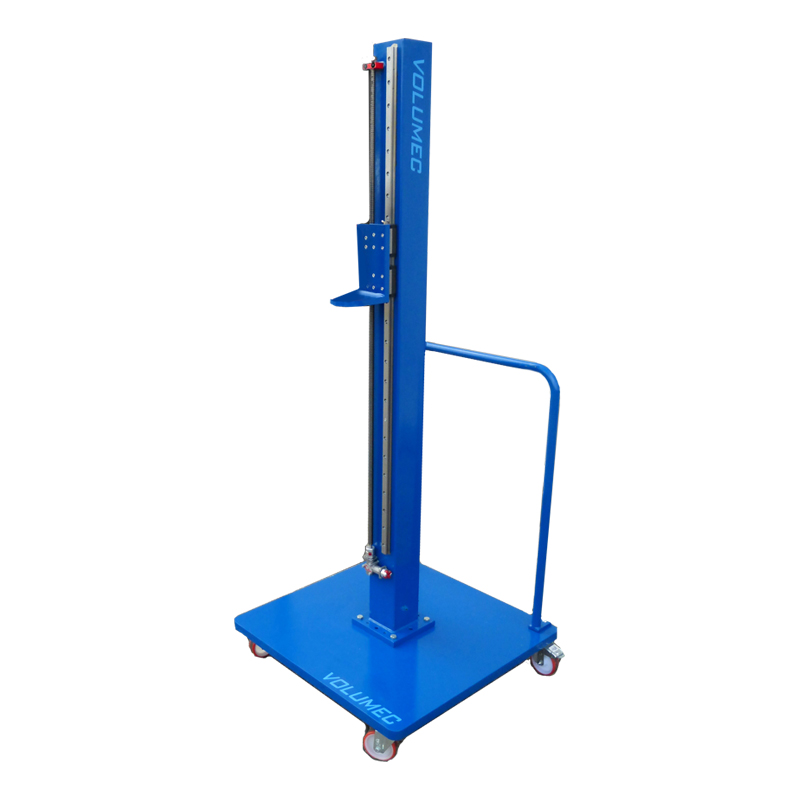

CCM001 - TROLLEY WITH LIFTING COLUMN 800X800x30 mm

with 4 wheels, 2 with brake, lifting column h=2000mm.
Controllable with electric or pneumatic screwdriver.
Weight: 220 Kg

DESCRIPTION - CCF100-EAM: TROLLEY 800X800X30 mm

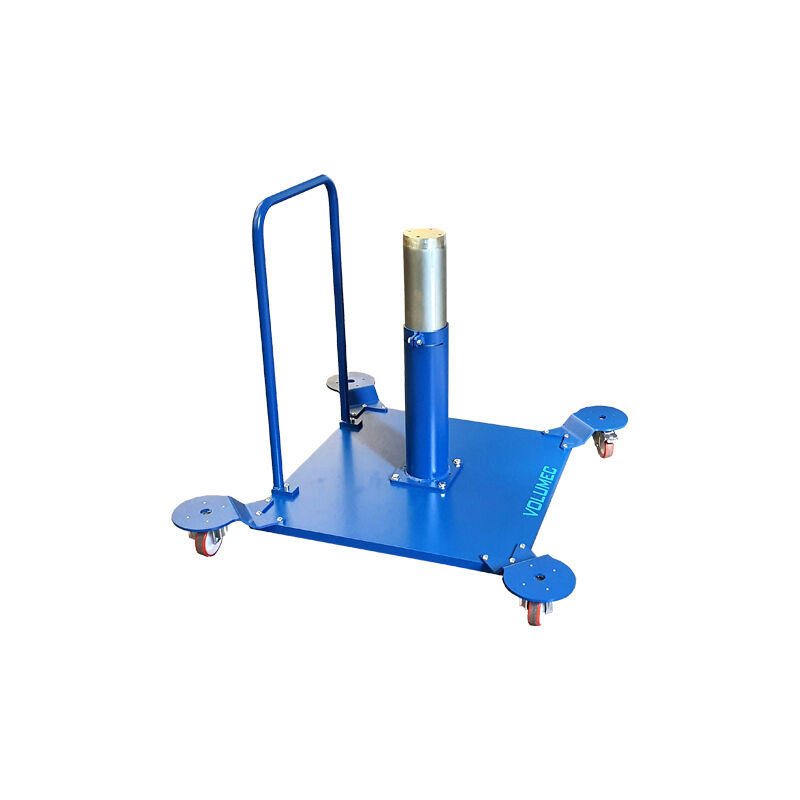

CCF100-EAM: TROLLEY 800X800X30 mm


Column with adjustable height 650mm-1050 mm.
4 turning wheels,
2 with brakes.
Weight: 185 Kg (408 lb).

DESCRIPTION - CCF001: LIFTING COLUMN h=1850 mm

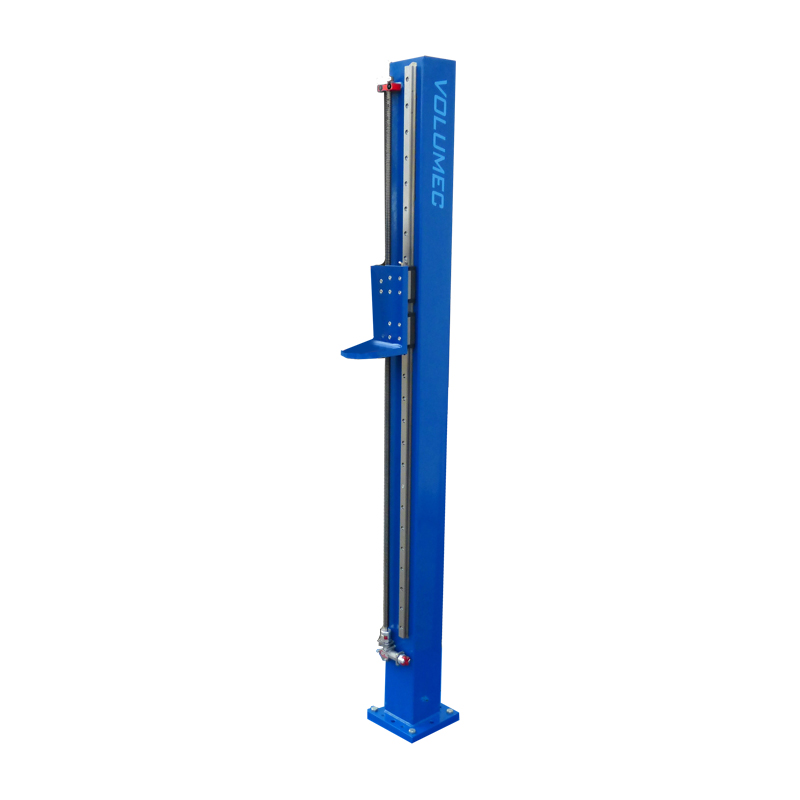

CCF001: LIFTING COLUMN h=1850 mm

Controllable with electric or pneumatic screwdriver.
Weight 60 kg

DESCRIPTION - TDS2000-TDS4000: FLOOR RAIL

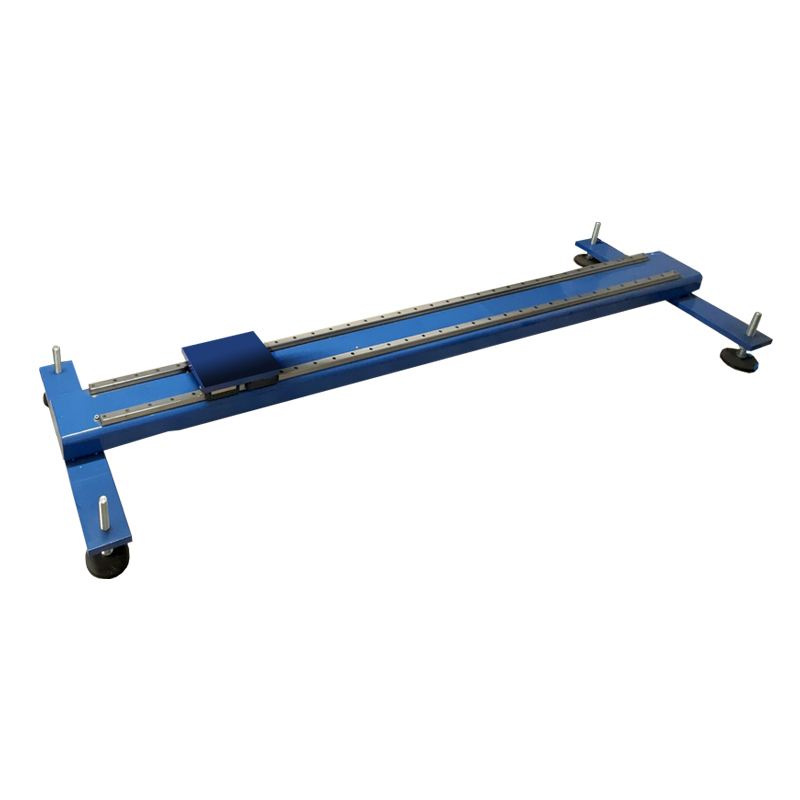

TDS2000-TDS4000: FLOOR RAIL

Length from 2000 to 4000 mm with manual movement (motorized optional)
