The series EasyArm is designed to support and balance the weight of any tool or device up to 30 Kg.
The structure, built entirely of aircraft aluminum, ensures high fluidity of movement, keep the tool in the correct positions, and absorb couples / torsion due to the machining.
There are many combinations that can be realized by choosing between different fastening systems, locking the arm in any position, work areas and accessories.
The use of the articulated arm balanced prevents' fatigue of the operator thereby ensuring greater productivity in respect of their own health.
EasyArm is a full line of articulated arms balanced suitable for different areas of application.
| Reach |
Vertical stroke |
Rotation |
Arm Weight |
|---|---|---|---|
| 1270 mm | 755 mm | 360 ° | 15-25 kg |
| 71 in | 30 in | 360 ° | 33-55 lbs |
| COMPATIBLE HEAD |
|---|
| All |
| * EAT (only fix head) |
| BENCH FIXING (standard) | CEILING FIXING (S) version |
|---|---|
|
 |
Removes the weight of your tool, reducing operator fatigue while safeguarding the health but increasing productivity
Allows a fluid and manageable movement in any direction
Absorbs couples and twists due to the use of tools
Is built entirely at our company in Italy
Offers a complete range of solutions for every process.
The articulated arm EA2 balances the weight of the tool or equipment in all working area, guaranteeing fast and precise movements without effort. ZERO GRAVITY.
| Model | Torque max | Weight Arm |
|---|---|---|
| Nm | kg | |
| EA135003 | 120 | 1,5 - 3 |
| EA135006 | 120 | 3,5 - 6 |
| EA136010 | 200 | 6,5 - 10 |
| EA136015 | 200 | 11 - 14 |
| EAT136019 | 200 | 15 - 19 |
| EAT138030 | 300 | 20 - 25 |
The EAB series can be used as standard balanced arm with the option of lock the tool to a desired height and maintained over the entire work area.
| Model | Torque max | Weight Arm |
|---|---|---|
| Nm | kg | |
| EAB136003 | 200 | 1,5 - 3 |
| EAB136006 | 200 | 3,5 - 6 |
| EAB136010 | 200 | 6,5 - 10 |
| EAB136015 | 200 | 11 - 14 |
| EAB136020 | 200 | 15 -18 |

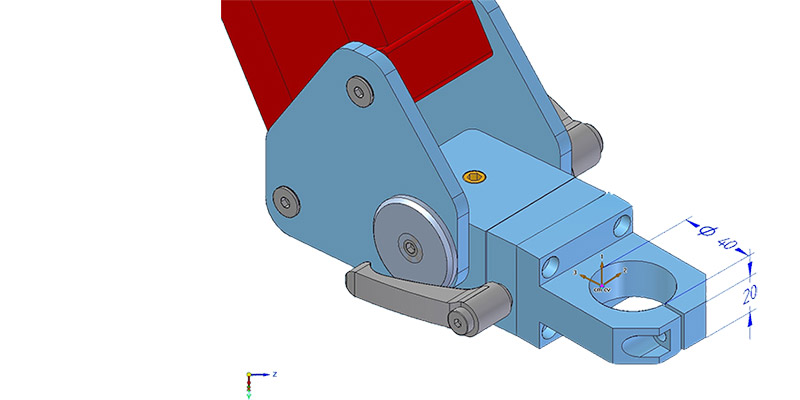

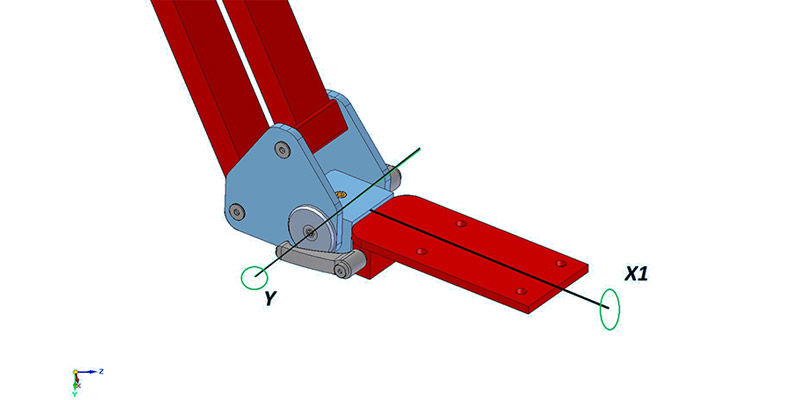

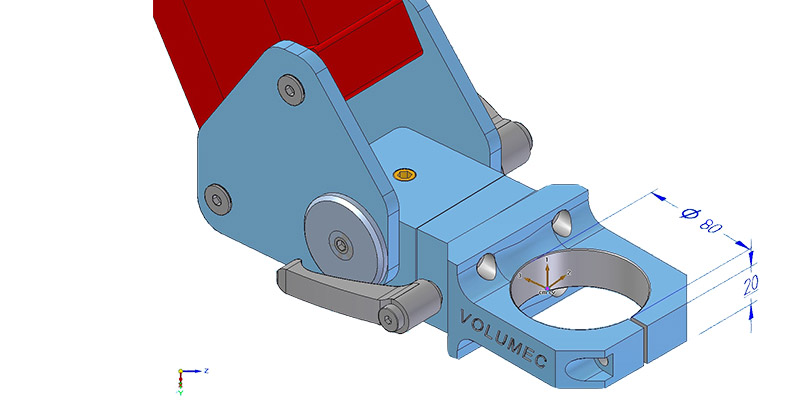

Easyarm offers a complete line of heads for fixing tools or devices that can be selected according to the type of machining to be performed.

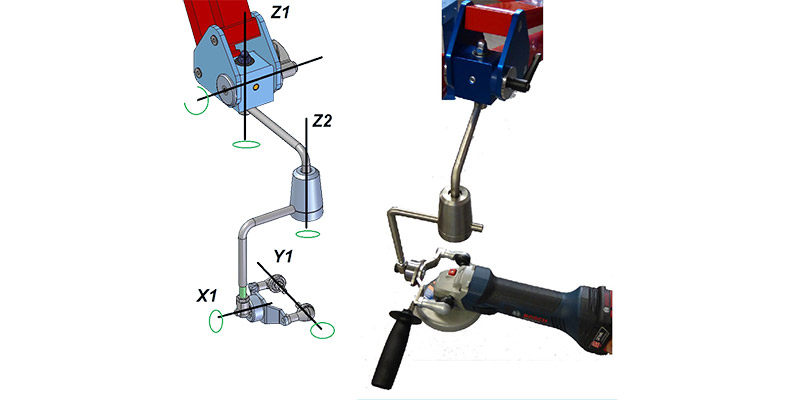

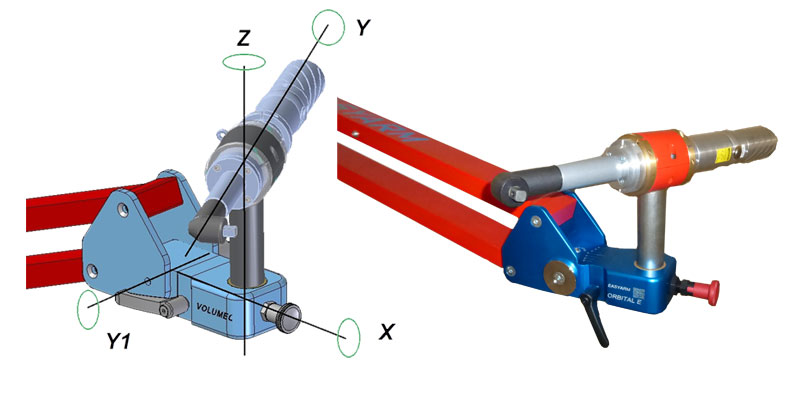

The new line of revolving orbitala ttachments offers maximum versatility of choice with the advantage of being able to position the tool both upwards and downwards according to the work area to be reached.

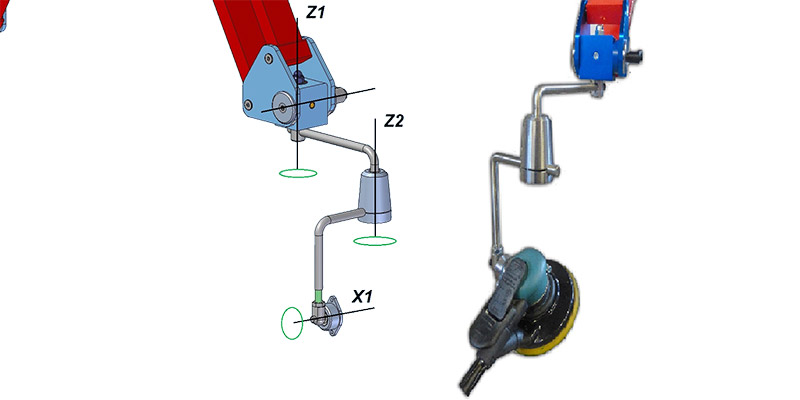

ORBITAL ATTACHMENT
ORBITAL ATTACHMENT EXCLUDED CLAMP FOR TOOL ATTACHMENT (T)
ORBITAL ATTACHMENT EXCLUDED CLAMP FOR TOOL ATTACHMENT (T)
ORBITAL ATTACHMENT
ORBITAL ATTACHMENT
ORBITAL ATTACHMENT
ORBITAL ATTACHMENT EXCLUDED CLAMP FOR TOOL ATTACHMENT (T)

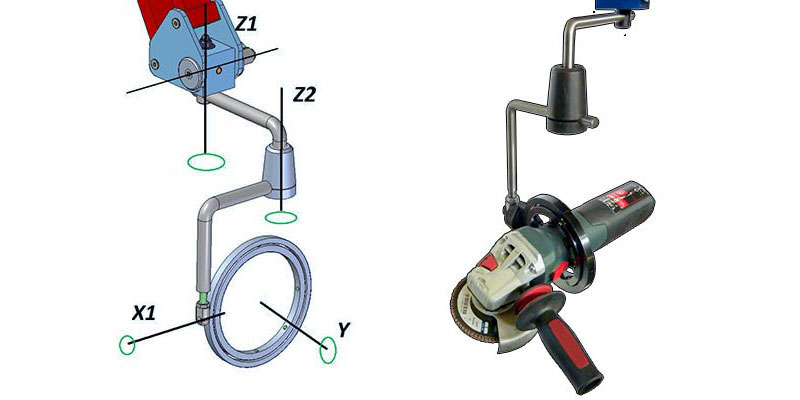

ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 125 mm
ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 125 mm

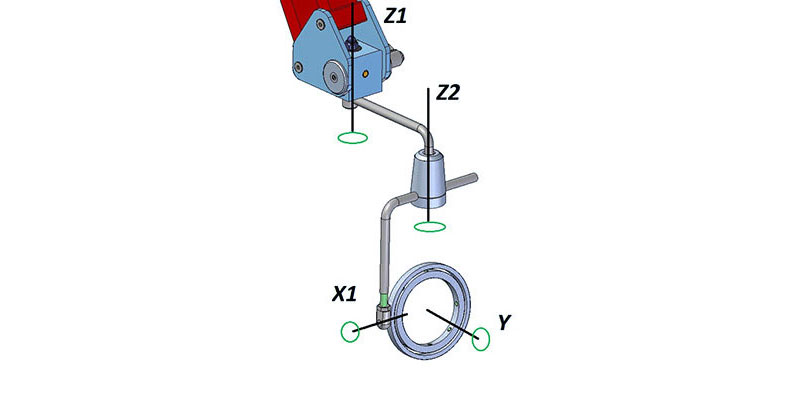

ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 85 mm
ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 85 mm

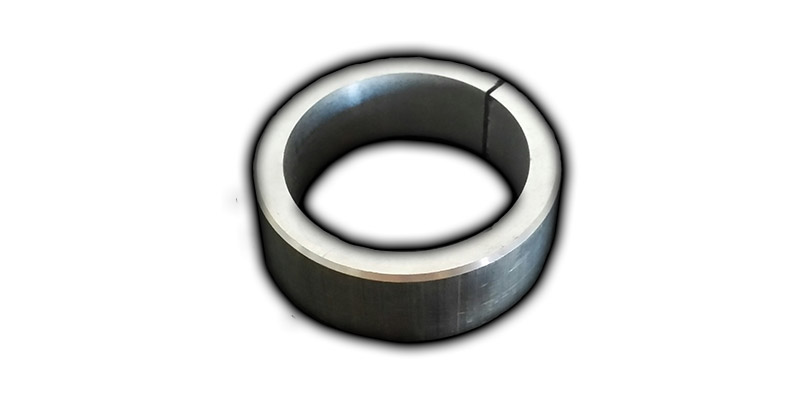

ORBITAL ATTACHMENT WITH TOOL ADAPTER COUPLE MAXIMUM TOOL DIAMETER 70 mm

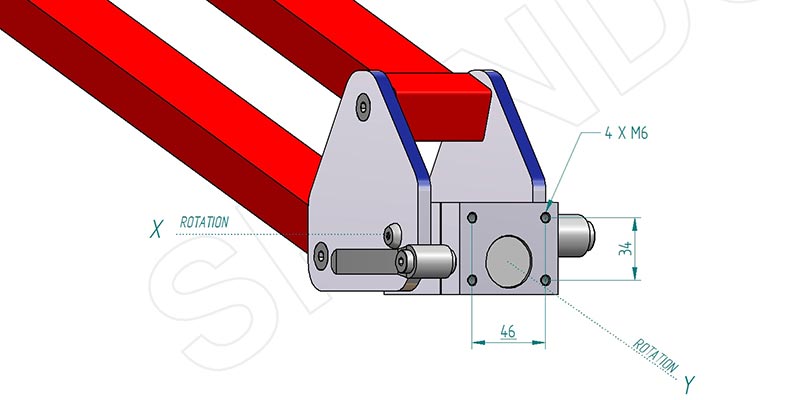

MULTIDIRECTIONAL HEAD FOR MAGNETIC DRILL
ORBITAL ATTACHMENT WITH VERTICAL GUIDE FOR PRECISION ADJUSTMENT FOR LASER MARKING MACHINE
ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 85 mm
ORBITAL ATTACHMENT MAXIMUM TOOL DIAMETER 125 mm
ø MAX 29 mm

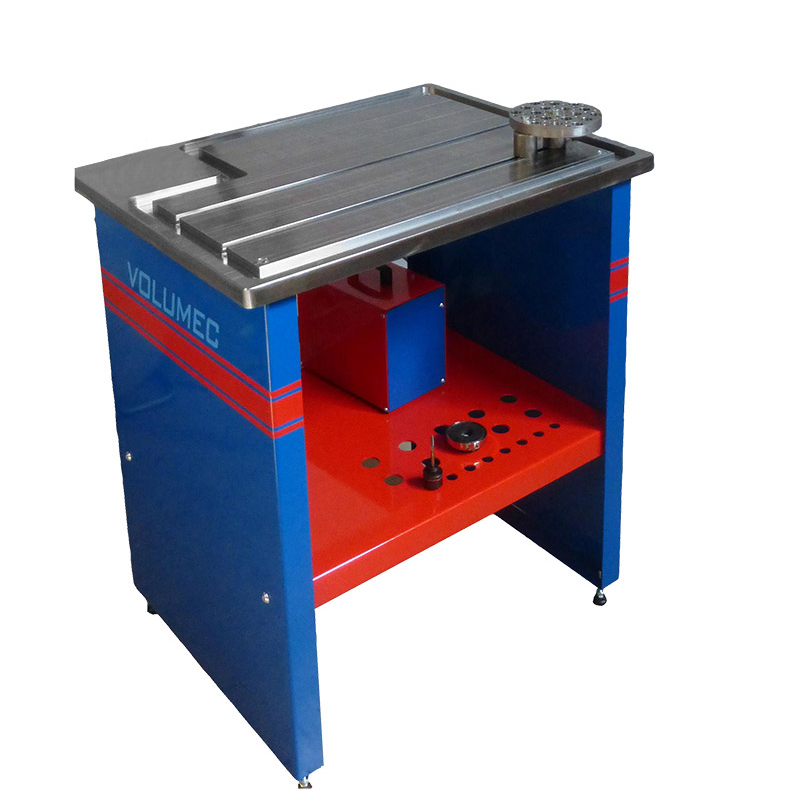

In painted steel with storage for tools 4 turning wheels, 2 with brake.
Weight 65 kg
With caves for clamping pieces 800x640 h=870 mm

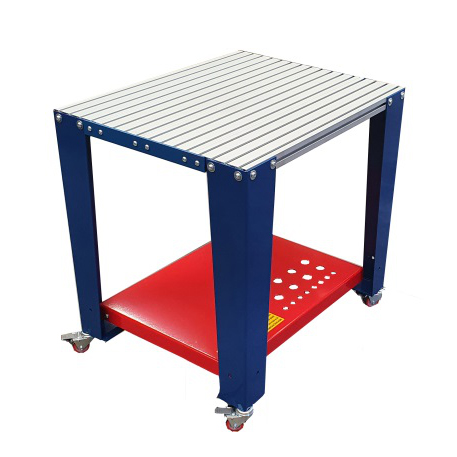

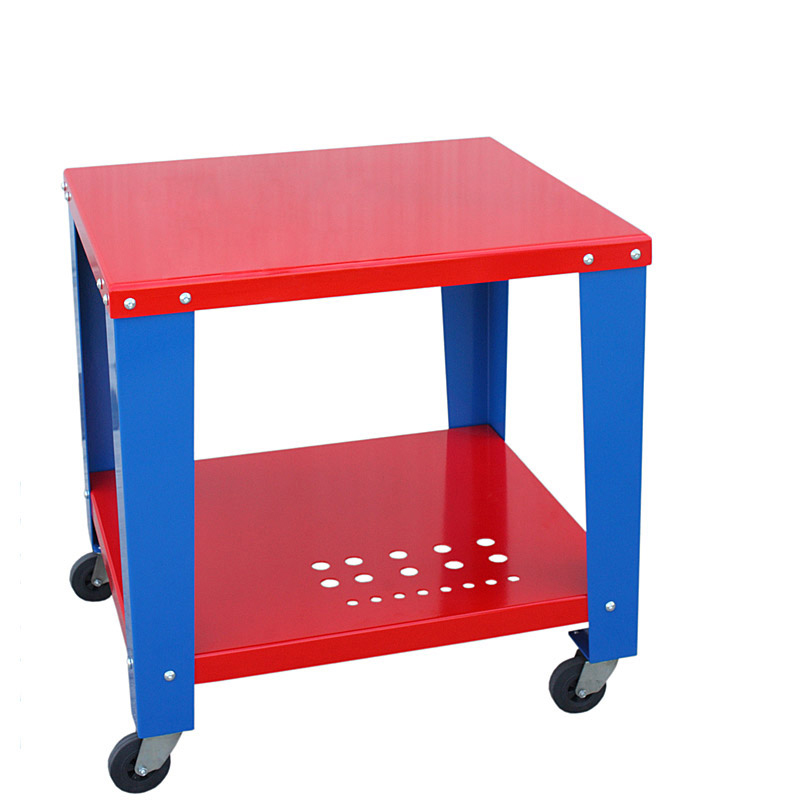

Lower shelf in steel, 4 turning wheels, 2 with brakes.
Weight : 55 Kg

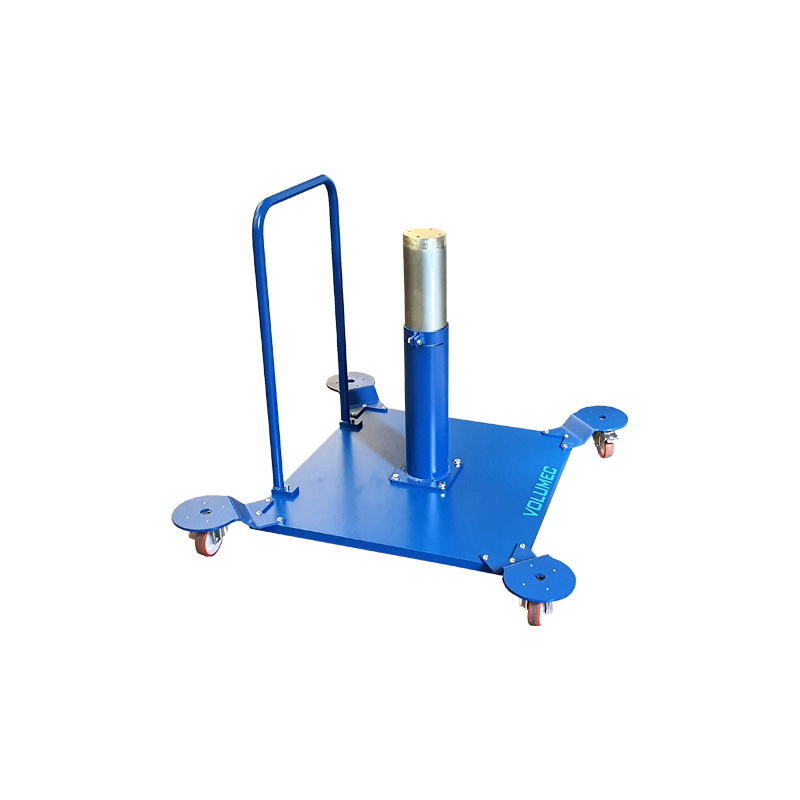

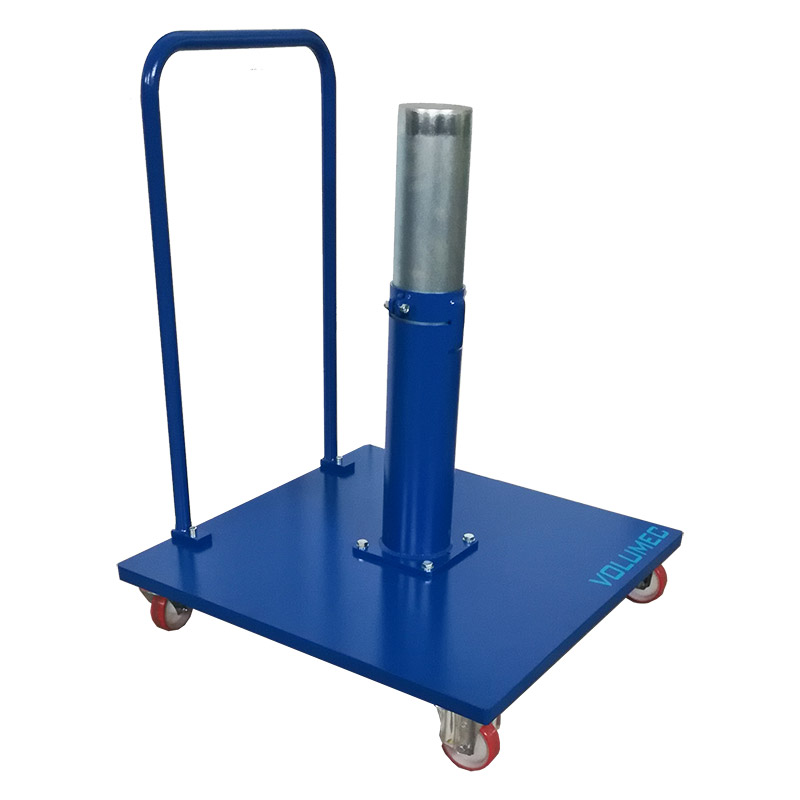

With base of 30 mm
Central column for arm support h=1000 mm
4 turning wheels, 2 with brakes
Weight 165 kg
with base of 30 mm, central column for arm support with adjustable height from 650 mm to 1050 mm, 4 turning wheels, 2 with brakes.
Weight 165 Kg
with 30 mm base, central arm support column with adjustable height from 650 mm to 1050 mm, 4 turning wheels 2 with brakes.
Weight 185 kg
(Low wheels)
Complete with lifting column arm h=2000 mm
movement on linear guide and trapezoidal bar piloted with electric or pneumatic screwdriver
4 turning wheels, 2 with brake push handle.
Weight 220 Kg
Complete with lifting column arm h=1920 mm
movement on linear guide and trapezoidal bar piloted with electric or pneumatic screwdriver supports for 4 turning wheels, 2 with brake
Push handle.
Weight 240 Kg
(Low wheels)
movement on linear guide and trapezoidal bar,piloted with electric or pneumatic screwdriver.
Weight 60 Kg
movement on 2 turning wheels with brake, 2 fixed, push handle.
Weight 155 Kg.
Total length 2200 mm
Working stroke 2000 mm with self-supporting structure and 4 adjustable stabilizers.
Weight: Kg.120
