EASY ARM® 3 Balaced Articulated Arm

The series Easy Arm is designed to support and balance the weight of any tool or device up to 20 Kg.

The structure, built entirely of aircraft aluminum, ensures high fluidity of movement, keep the tool in the correct positions, and absorb couples / torsion due to the machining.

There are many combinations that can be realized by choosing between different fastening systems, locking the arm in any position, work areas and accessories.

The use of the articulated arm balanced prevents' fatigue of the operator thereby ensuring greater productivity in respect of their own health.

Easy Arm is a full line of articulated arms balanced suitable for different areas of application.

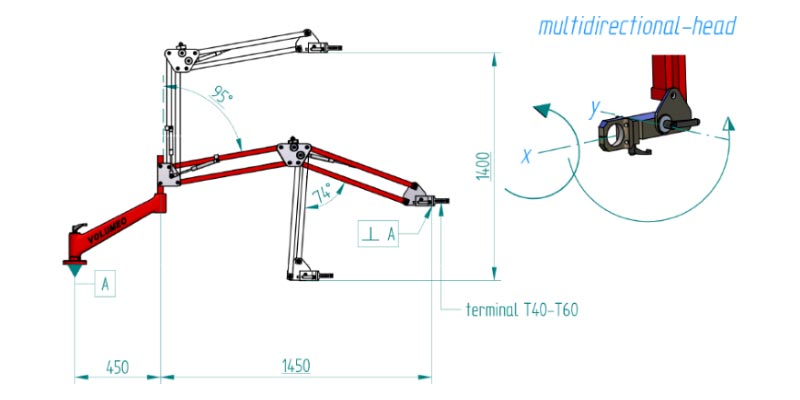

Working Area

Characteristics

• EASY ARM removes the weight of your tool, reducing operator fatigue while safeguarding the health but increasing productivity
• EASY ARM allows a fluid and manageable movement in any direction
• EASY ARM absorbs couples and twists due to the use of tools
• EASY ARM is built entirely at our company in Italy
• EASY ARM offers a complete range of solutions for every process for every process.

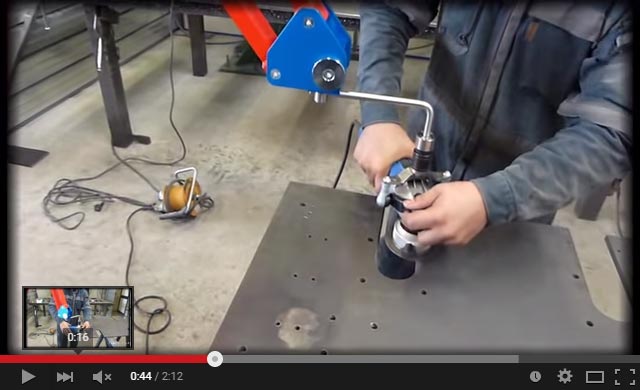

EA3 - Standard Triple articulated arm

The pantograph structure maintains the balance and at the same time contrasts the torque tool. By the tilting arm is possible to optimize the best working position. ZERO GRAVITY.

Model	Ray work area	Structure	Torque	Weight Balanced	Weight Arm
	(mm)		(Nm)	(kg)	(kg)
EA195002	1900	Triple arm	120	1,5 – 2	16
EA195004	1900	Triple arm	120	2,5 – 5	16
EA195010	1900	Triple arm	180	5,5 – 8	17
EA196010	1900	Triple arm	300	8,5 – 11	17
EA196015	1900	Triple arm	300	11,5 - 15	18
EAT198010	1900	Triple arm	500	16 - 20	50

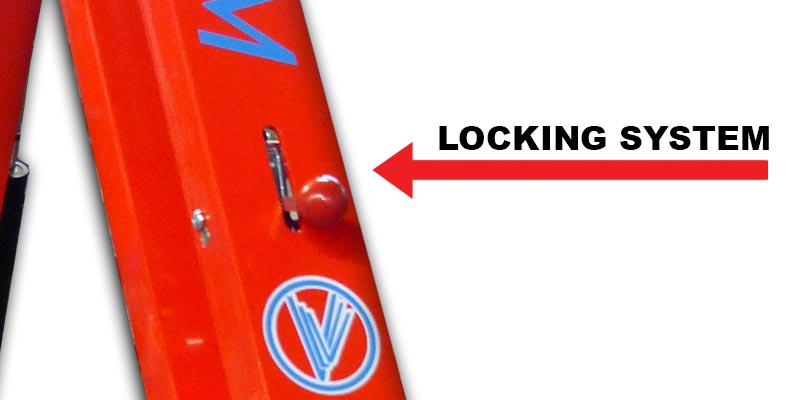

EAB3 - Triple articulated arm with locking system

The EAB series can be used as standard balanced arm with the option of lock the tool to a desired height and maintained over the entire work area.

Model	Ray work area	Structure	Torque	Weight Balanced	Weight Arm
	(mm)		(Nm)	(kg)	(kg)
EAB196002	1900	Triple arm	150	1,5 – 2	16
EAB196004	1900	Triple arm	150	2,5 – 5	18
EAB196008	1900	Triple arm	150	5,5 – 8	18
EAB196010	1900	Triple arm	200	8,5 – 11	19
EAB196015	1900	Triple arm	200	11,5 - 15	20
