EASY ARM® 2 Balaced Articulated Arm

The series Easy Arm is designed to support and balance the weight of any tool or device up to 14 Kg.

The structure, built entirely of aircraft aluminum, ensures high fluidity of movement, keep the tool in the correct positions, and absorb couples / torsion due to the machining.

There are many combinations that can be realized by choosing between different fastening systems, locking the arm in any position, work areas and accessories.

The use of the articulated arm balanced prevents' fatigue of the operator thereby ensuring greater productivity in respect of their own health.

Easy Arm is a full line of articulated arms balanced suitable for different areas of application.

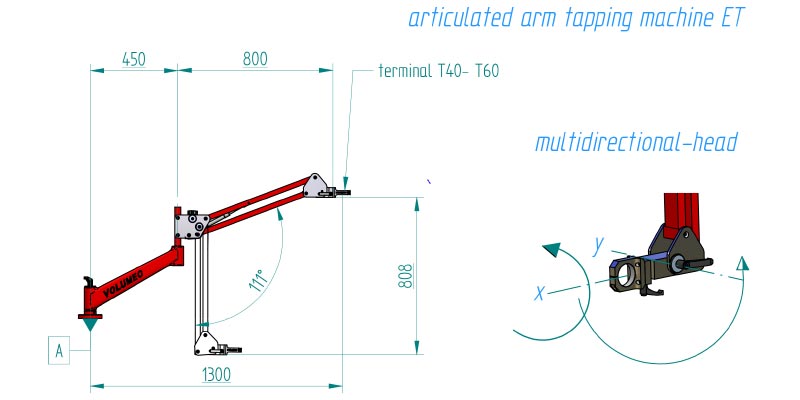

Working Area

Characteristics

• EASY ARM removes the weight of your tool, reducing operator fatigue while safeguarding the health but increasing productivity
• EASY ARM allows a fluid and manageable movement in any direction
• EASY ARM absorbs couples and twists due to the use of tools
• EASY ARM is built entirely at our company in Italy
• EASY ARM offers a complete range of solutions for every process for every process.

EA2 - Standard double articulated arm

The articulated arm EA2 balances the weight of the tool or equipment in all working area, guaranteeing fast and precise movements without effort. ZERO GRAVITY.

Model	Ray work area	Structure	Torque	Weight Balanced	Weight Arm
	(mm)		(Nm)	(kg)	(kg)
EA135003	1300	Double arm	120	1,5 – 3	14
EA135006	1300	Double arm	120	3,5 – 6	14,5
EA136010	1300	Double arm	150	6,5 – 10	15,5
EA136015	1300	Double arm	150	11 – 14	16
EAT136010	1300	Double arm	200	7 - 10	18
EAT136014	1300	Double arm	200	10 - 14	18

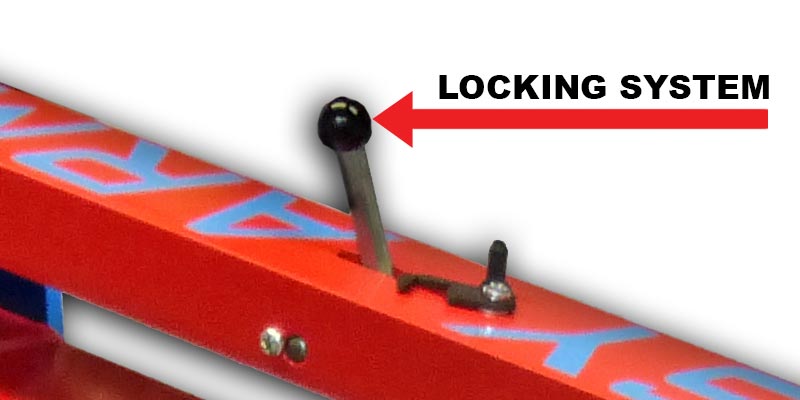

EAB2 - Double articulated arm with locking system

The EAB series can be used as standard balanced arm with the option of lock the tool to a desired height and maintained over the entire work area.

Model	Ray work area	Structure	Torque	Weight Balanced	Weight Arm
	(mm)		(Nm)	(kg)	(kg)
EAB136003	1300	Double arm	150	1,5 – 3	14
EA135006	1300	Double arm	150	3,5 – 6	16
EA136010	1300	Double arm	150	6,5 – 10	16
EA136015	1290	Double arm	200	11 – 14	18
